R12800,00
Complete visibility for precise cutting results.
Extremely versatile. Extremely precise. Extremely easy to handle: Whether guided freely or on the guide rail, the OF 1010 R router is the ideal one tool for fine routing work. Thanks to its size and low weight, it can be accurately guided along edges, lines or curves. For routing profiles, grooves, rebates and dovetail joints – the OF 1010 R impresses with a wide variety of possible applications.
Compact design and light weight

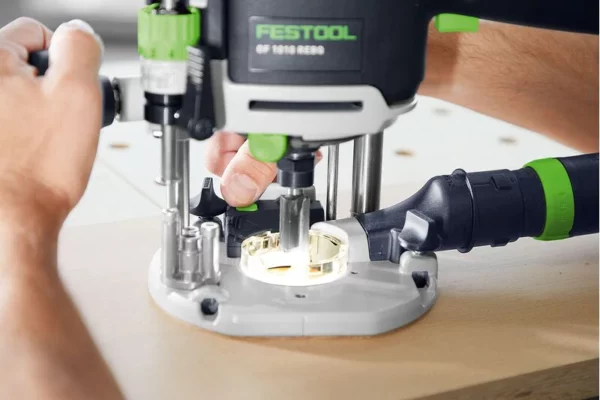

Clear view of the routing area
Quick and easy cutter changes
Routing depth adjustment to 1/10 mm
Torsionally rigid router table due to guide columns on both sides
Greater safety thanks to quick-acting brake and restart protection
MMC electronics for adaptation to the working material and temperature monitoring
Chip extraction system integrated into the router table for hose diameters D 27 and D 36
Main applications
Rounding, chamfering, rebating and profiling edges
Recessing metal fittings

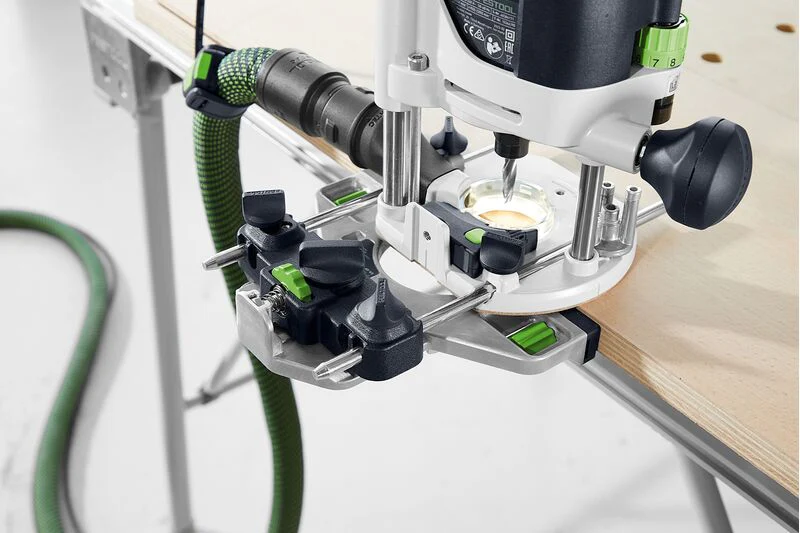

Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology)
Producing rows of holes in cabinets using the hole series system LR 32
Fashioning wooden joints with the VS 600

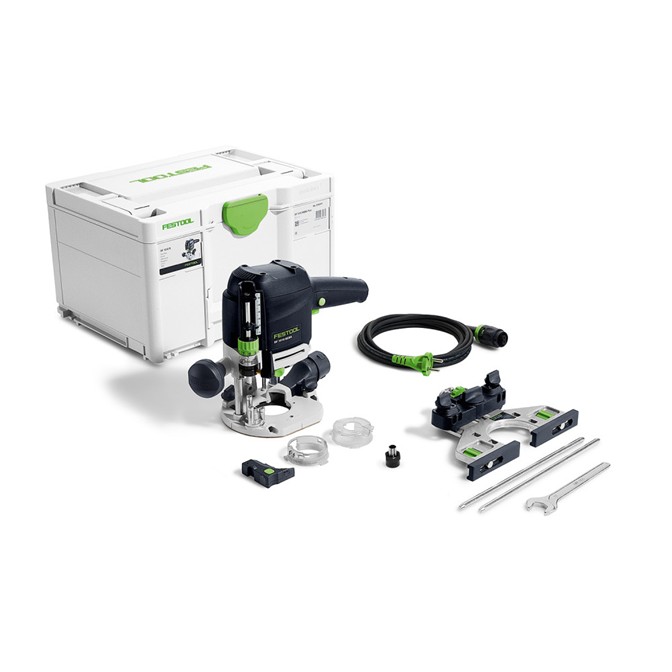

Items included
OF 1010
1/4 clamping collet
side stop
guide rail adapter
chip deflector
in SYSTAINER SYS 3 T-LOC
Technical data
Collet dia. 6 – 8 mm
Routing stroke 55 mm
Routing depth fine adjustment range 8 mm
Idle engine speed 9500 – 23 000 min⁻¹
Power consumption 1 010 W
Weight 3 kg
Dust extraction connection dia. 27 mm
