R28400,00
The power pack with enormous torque.
More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest low-end torque, the highest precision and the greatest ergonomic comfort. No matter what your task is – with the OF 2200, you have the solution in your hands.
Out of stock
Top power development and fully variable speed for hard materials and increased material thicknesses
Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently
Tool-free copying ring and base-runner change
Fast, convenient router-bit change with rocker and ratchet principle
Detachable base plate for fast profile cutter adjustment
Dual guide column clamp for extra torsional rigidity and greater precision
Simple and exact routing depth setting to 1/10 mm
Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher
Main applications
Rabbeting, grooving and profiling
Routing large cutouts, circles and arcs with the MFS routing template
Creating worktop corner joints with the worktop template
Routing seals and espagnolettes in windows and doors
Stationary routing of up to Ø 60 mm with the TF 2200 table router

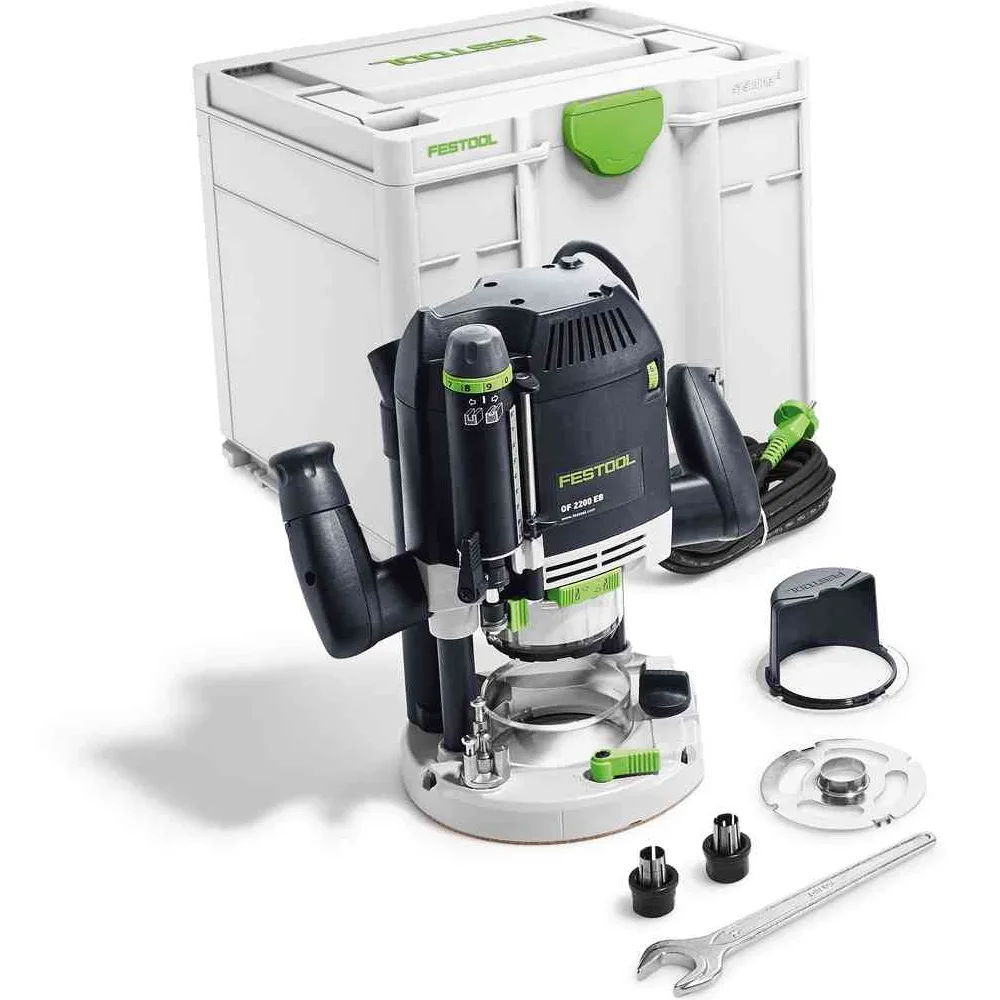

Items included
OF 2200 EB-PLUS ZA
Ø 1/4 clamping collet
Ø 1/2 clamping collet
copying ring Ø 30 mm
chip deflector
in SYSTAINER SYS 4
Technical data
Collet dia. 6 – 12.7 mm
Routing stroke 80 mm
Routing depth fine adjustment range 20 mm
Idle engine speed 10 000 – 22 000 min⁻¹
Power consumption 2 200 W
Weight 7.8 kg
Max. cutter diameter 89 mm
Dust extraction connection dia. 36/27 mm
