| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 120 mm |
| Max. drilling depth core drilling with manual feed | 75 mm |
R58000,00

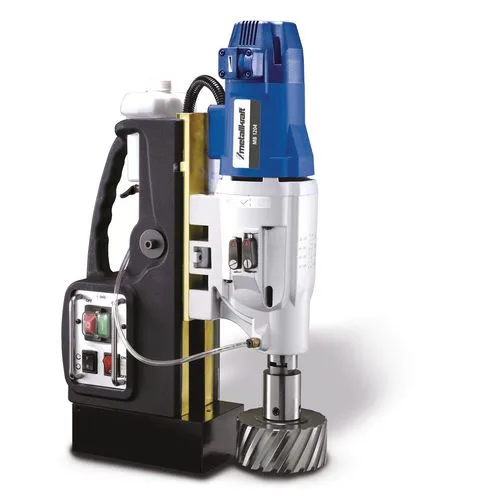

Metallkraft MB 1204 Magnetic Core Drill: Precision and Power for Professional Drilling.
Elevate your drilling capabilities with the Metallkraft MB 1204 Magnetic Core Drill, a high-quality machine designed for versatile use in demanding industrial environments. Engineered to deliver precision, efficiency, and durability, this magnetic core drill is ideal for drilling large diameters economically and quickly, making it an indispensable tool for metalworking, fabrication, construction, and more.
Key Features:
Versatile Performance: Equipped to handle core drills with a 19mm Weldon shank, the MB 1204 offers versatile performance suitable for a wide range of drilling applications. From metal fabrication to construction projects, this drill delivers exceptional results with ease.
Stable Drill Guide: The long and deeply mounted quill holder ensures a stable drill guide, allowing for precise drilling even in challenging conditions. With its high-quality construction and robust design, the MB 1204 provides reliable performance in any drilling task.
Safety and Reliability: The device is earthed and double insulated, making it safe and reliable for use on job sites. With a high magnetic holding force, the drill stays securely in place during operation, ensuring stability and minimizing the risk of accidents.
Efficient Cooling System: The MB 1204 features a coolant system that passes coolant through the drill, effectively dissipating heat and prolonging the life of the cutting tools. This ensures consistent drilling performance and prevents overheating, even during extended use.
Easy Conversion: With just a few simple steps, the MB 1204 can be converted from core drilling to full drilling, providing versatility and convenience for different drilling tasks.
Technical Specifications:
| Collet | |
|---|---|
| Spindle | MK 3 |
| Drill | Weldon 3/4 ” / Weldon 1 1/4 “ |
| Core drills | |
|---|---|
| Core drills Ø max. with manual feed | 120 mm |
| Max. drilling depth core drilling with manual feed | 75 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 370 mm |
| Width/depth approx. | 235 mm |
| Height approx. | 520 mm |
| Weight approx. | 29.3 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2.0 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Full drills | |
|---|---|
| Drill Ø max. full drilling directly mounted | 32 mm |
| Drilling depth max. full drilling directly mounted | 150 mm |
| Drill Ø max. full drilling mounted with adapter & chuck | 16 mm |
| Drilling depth max. full drilling mounted with adapter & chuckBohrtiefe max. | 110 mm |
| Magnet | |
|---|---|
| Holding force | 32000 N |
| Magnet base length | 210 mm |
| Magnet base width | 120 mm |
| Speed range | |
|---|---|
| Speed(s) under load | 35-120 / 70-220 / 80-250 / 140-450 min¯¹ |
