| Dimensions and weights | |
|---|---|
| Column diameter | 73 mm |
| Length approx. | 700 mm |
| Width/depth approx. | 350 mm |
| Height approx. | 1620 mm |
| Weight approx. | 71 kg |
R15800,00

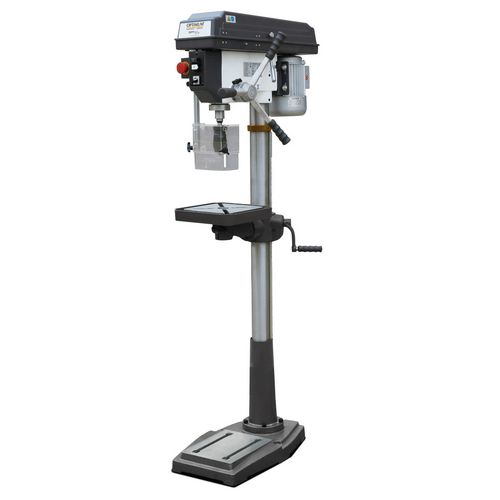

Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
Ground multi-tooth driver

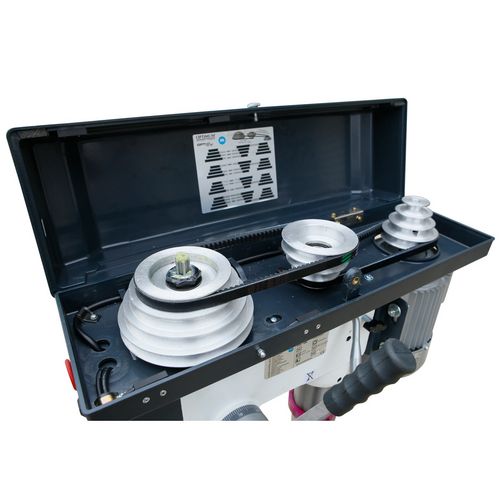

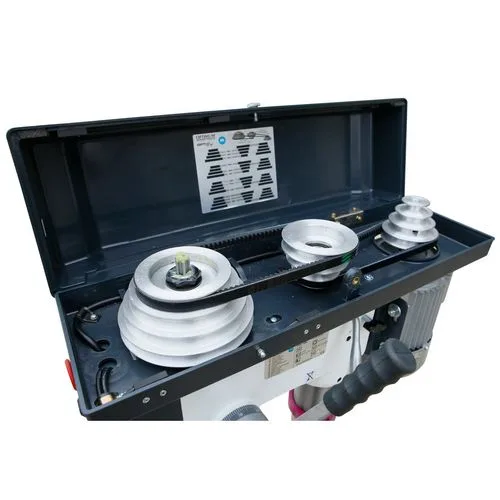

Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
Drill spindle with precision ball bearing
Quick action drill chuck as standard equipment
Belt cover with safety switch
Easy to use switch according to IP 54
Separate emergency stop pushbutton switch
| Dimensions and weights | |
|---|---|
| Column diameter | 73 mm |
| Length approx. | 700 mm |
| Width/depth approx. | 350 mm |
| Height approx. | 1620 mm |
| Weight approx. | 71 kg |
| Drilling performance | |
|---|---|
| Drilling performance steel (S235JR) | 25 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
|---|---|
| Workspace length | 280 mm |
| Workspace width | 280 mm |
| T-groove type | diagonal |
| T-groove size | 14 mm |
| T-groove number | 2 |
| Rotation | 360 ° |
| Angle | 45 ° |
| Load bearing capacity | 40 kg |
| Max. distance spindle – drilling table | 690 mm |
| Electrical Data | |
|---|---|
| Drive motor output | 0,75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
|---|---|
| Max. distance spindle – machine base | 1200 mm |
| Work area length | 500 mm |
| Work area width | 300 mm |
| Machine base T-groove size | 15 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Speed range | |
|---|---|
| Speed range | 200 2440 min¯¹ |
| Number of gears | 12 Stufen |
| Spindle | |
|---|---|
| Quill stroke | 80 mm |
| Spindle chuck | MT 3 |
| Reach | 181 mm |
