OPTIdrill B 40GSM Gear Drilling Machine

R130900,00

OPTIdrill B 40GSM Gear Drilling Machine: Precision and Power in Heavy-Duty Drilling.

The OPTIdrill B 40GSM Gear Drilling Machine is engineered for heavy-duty drilling tasks with exceptional precision and power. This heavy version comes with a tapping attachment, making it ideal for demanding industrial applications where accuracy and reliability are paramount.

Description

OPTIdrill B 40GSM Gear Drilling Machine: Precision and Power in Heavy-Duty Drilling

The OPTIdrill B 40GSM Gear Drilling Machine is engineered for heavy-duty drilling tasks with exceptional precision and power. This heavy version comes with a tapping attachment, making it ideal for demanding industrial applications where accuracy and reliability are paramount.

Key Features:

Heavy-Duty Construction: Built with a heavy, solid cast construction, the OPTIdrill B 40GSM ensures stability and durability even during the most challenging drilling operations. The thick-walled cast-iron column and solid base plate provide high power absorption and stability for precise drilling results.

Automatic Gear Lubrication: Equipped with an oil pump, this drilling machine features automatic gear lubrication, ensuring smooth operation and extending the lifespan of the gears. This feature reduces maintenance requirements, allowing for uninterrupted productivity.

High Precision: The hardened and ground main spindle ensures high concentricity, enabling accurate drilling with minimal runout. The drilling depth stop, adjustable with a millimeter scale, allows for precise control over drilling depths, enhancing overall accuracy.

Integrated Features: The OPTIdrill B 40GSM is equipped with a range of integrated features for added convenience and efficiency. These include a threading attachment, machine light integrated into the drill head for improved visibility, and an expeller for easy tool changes.

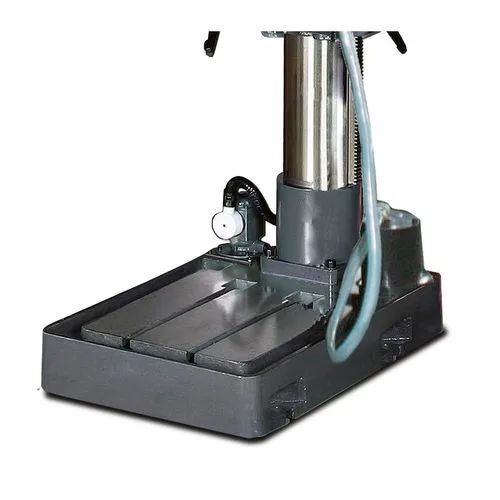

Coolant System: Compliant with Machinery Directive standards, this drilling machine features a built-in coolant device and chip filter, ensuring efficient chip removal and effective cooling during drilling operations. The large-dimensioned drill table with T-slots and cooling water channel further enhances performance and versatility.

OPTIdrill B 40GSM vs. OPTIdrill B 40GSP:

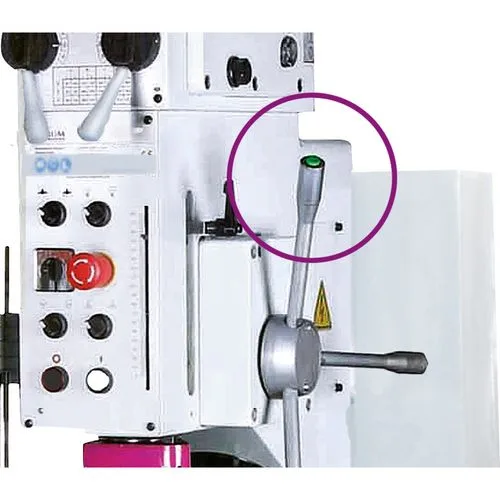

  • The OPTIdrill B 40GSM features electrical quill feed, providing automated drilling operations for enhanced productivity.
  • The OPTIdrill B 40GSP, on the other hand, offers manual quill feed, providing precise control over drilling operations.
  • Enhance your drilling capabilities with the OPTIdrill B 40GSM Gear Drilling Machine. Engineered for heavy-duty performance and precision, this machine is the perfect solution for industrial applications where reliability and accuracy are paramount.
Dimensions and weights
Column diameter 150 mm
Length approx. 935 mm
Width/depth approx. 530 mm
Height approx. 2280 mm
Weight approx. 500 kg
Drilling performance
Drilling performance steel (S235JR) 35 mm
Continuous drilling performance steel (S235JR) 30 mm
Thread tapping steel (S235JR) M 24
Drilling table
Workspace length 560 mm
Workspace width 560 mm
T-groove type diagonal
T-groove size 18 mm
T-groove number 2
Rotation ± 90 °
Load bearing capacity 250 kg
Max. distance spindle – drilling table 780 mm
Electrical Data
Supply voltage 400 V
Mains frequency 50 Hz
Machine base
Max. distance spindle – machine base 1320 mm
Work area length 510 mm
Work area width 500 mm
Machine base T-groove size 18 mm
Machine base T-groove number 2
Machine base T-groove spacing 150 mm
Motor(s)
Spindle motor drive output 0.85 / 1.5 kW
Coolant pump drive motor output 40 W
Speed range
Speed range 50 – 1450 min¯¹
Number of gears 18 Steps
Spindle
Quill stroke 180 mm
Spindle chuck MT 4
Reach 350 mm
Quill feed speed 0,1 / 0,2 mm/rev
Quill feed gears 2 Steps
