OPTIdrill DH 32GS Upright Drill

R91900,00

OPTIdrill DH 32GS Upright Drill: Precision and Versatility for Professional Machining.

Elevate your machining capabilities with the OPTIdrill DH 32GS Upright Drill, a robust and versatile drilling machine designed for professional use in workshops, manufacturing facilities, and industrial settings. With its advanced features and durable construction, this upright drill delivers exceptional performance, accuracy, and reliability, making it an indispensable tool for a wide range of drilling applications.

Description

OPTIdrill DH 32GS Upright Drill Key Features:

High Precision: The OPTIdrill DH 32GS ensures precise drilling operations with its hardened and ground main spindle, which provides high concentricity for accurate hole placement. The low-maintenance gearbox with grease lubrication and polyamide gear wheels further enhances precision and ensures smooth operation even under heavy loads.

Versatile Speed Range: This upright drill offers a large speed range, allowing you to adjust the drilling speed to suit different materials and applications. Whether you’re drilling through metal, wood, or other materials, you can easily tailor the speed to achieve optimal results, enhancing efficiency and productivity in your workshop.

Durable Construction: Built with a heavy, solid cast construction and a thick-walled cast-iron column, the OPTIdrill DH 32GS provides exceptional stability and power absorption during drilling operations. The massive base plate, combined with the strongly ribbed design, enhances durability and ensures reliable performance over time.

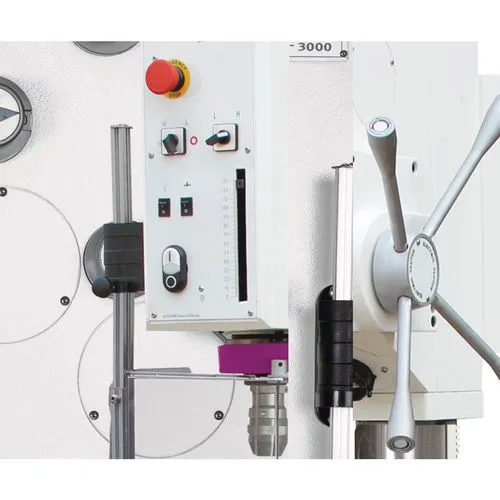

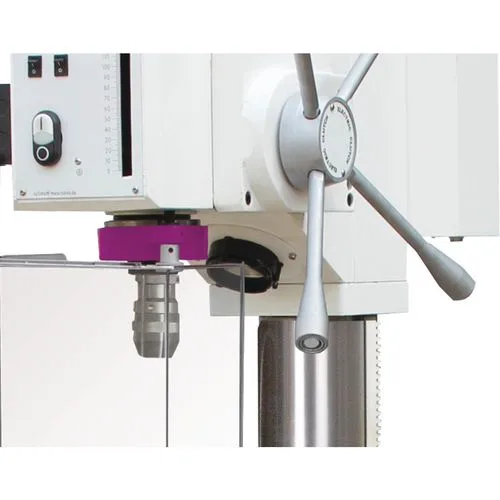

Integrated Safety Features: The upright drill is equipped with a large, height-adjustable protective screen with a safety switch, ensuring maximum protection for the user during operation. Additionally, the drilling depth stop, adjustable with a millimeter scale, enables precise depth control for accurate drilling results.

Convenient Operation: With features such as forward/reverse operation, an integrated machine light in the drill head, and an integrated expeller for easy tool change, the OPTIdrill DH 32GS offers convenient and user-friendly operation, enhancing workflow efficiency in the workshop.

Dimensions and weights
Column diameter 115 mm
Length approx. 725 mm
Width/depth approx. 450 mm
Height approx. 2200 mm
Weight approx. 312 kg
Drilling performance
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 26 mm

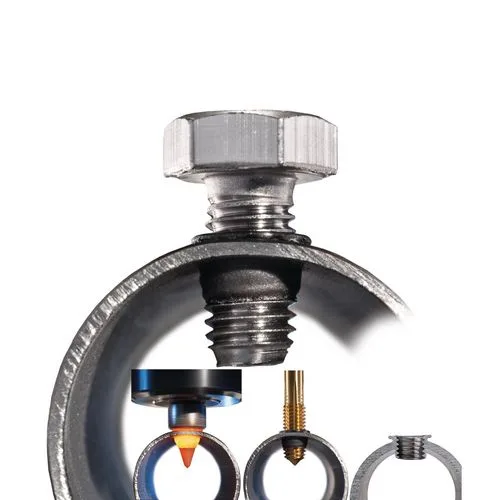

Thread tapping steel (S235JR) M 16 x 2 mm
Drilling table
Workspace length 400 mm
Workspace width 420 mm
T-groove type diagonal
T-groove size 14 mm
T-groove number 2
Rotation 360 °
Load bearing capacity 120 kg
Max. distance spindle – drilling table 820 mm
Electrical Data
Supply voltage 400 V
Mains frequency 50 Hz
Machine base
Max. distance spindle – machine base 1270 mm
Work area length 450 mm
Work area width 395 mm
Machine base T-groove size 14 mm
Machine base T-groove number 2
Machine base T-groove spacing 150 mm
Motor(s)
Spindle motor drive output 1,5 / 2,2 kW
Coolant pump drive motor output 40 W
Speed range
Speed range 75 – 2000 min¯¹
Number of gears 8 Steps
Spindle
Quill stroke 125 mm
Spindle chuck MT 4
Reach 285 mm
Quill feed speed 0.05 / 0.1 mm/rev
