| Dimensions and weights | |
|---|---|
| Max. width/depth | 985 mm |
| Max. height | 1700 mm |
| Length approx. | 1400 mm |
| Width/depth approx. | 685 mm |
| Weight approx. | 185 kg |
R68000,00

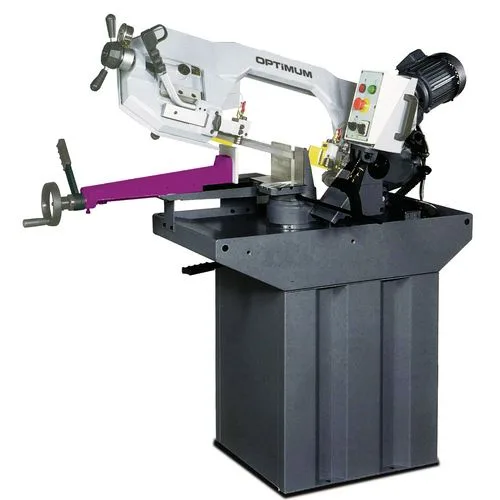

OPTIsaw S 275NV Metal Band Saw: Precision Cutting with Adjustable Speed.
Elevate your metal-cutting capabilities with the OPTIsaw S 275NV Metal Band Saw, a versatile and efficient tool designed for a wide range of cutting applications in workshops, fabrication shops, and industrial settings. With its swivel saw bow and continuously adjustable saw blade speed, this metal band saw offers unparalleled precision, flexibility, and performance.
OPTIsaw S 275NV Metal Band Saw Key Features:

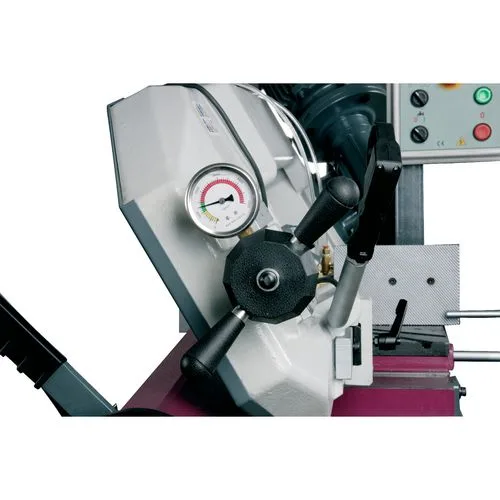

Swivel Saw Bow: The OPTIsaw S 275NV features a swivel saw bow, allowing for versatile cutting angles and applications. Whether you need straight cuts or angled cuts, this feature enables precise and efficient cutting across various materials and thicknesses.
Continuously Adjustable Saw Blade Speed: Unlike traditional band saws, the S 275NV offers a continuously adjustable saw blade speed ranging from 20 to 90 meters per minute. This allows for precise speed control, ensuring optimal cutting performance for different materials and cutting requirements. Additionally, the speed can be changed during operation for added convenience and flexibility.
Silent Run: Enjoy a quiet and smooth cutting experience with the OPTIsaw S 275NV, thanks to its silent run design. This minimizes noise levels in the workshop environment, providing a more comfortable and productive working environment.
Hydraulic Cylinder Lowering: The saw arm is lowered via a hydraulic cylinder with a throttle valve that is infinitely adjustable. This allows for precise control over the cutting process, enhancing cutting accuracy and efficiency.
Coolant System: Equipped with a built-in coolant system, the S 275NV ensures efficient cooling of the cutting area during operation. This helps prevent overheating and extends the life of the saw blade, resulting in cleaner cuts and improved cutting performance.
High-Quality Bi-Metal Saw Band: The saw comes standard with a high-quality bi-metal saw band, known for its durability and performance. This ensures long-lasting cutting performance and minimizes downtime for blade replacement.

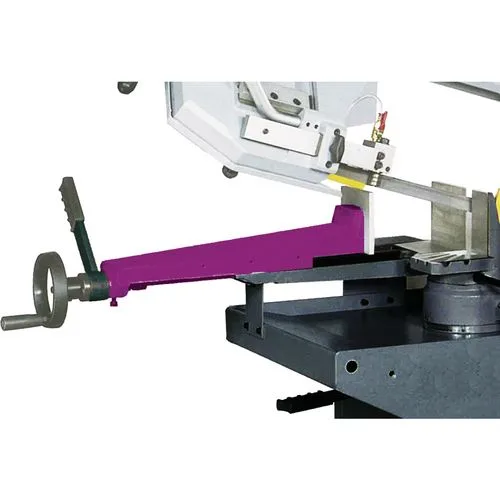

User-Friendly Design: Featuring an easy-to-read scale for angle adjustment, a micro switch for automatic limit switch, and a quick-action vice adjustable by handwheel, the S 275NV is designed for user convenience. These features streamline operation and ensure efficient workflow.
Overload Protection: The saw is equipped with overload protection to prevent damage to the motor and components during operation. This enhances safety and prolongs the lifespan of the machine.
| Cutting ranges | |
|---|---|
| 0° round (full material) | 225 mm |
| 0° quadratic (full material) | 190 mm |
| 0° rectangle horizontal (full material) | 150 x 245 mm |
| +45° round (full material) | 145 mm |
| +45° quadratic (full material) | 150 mm |
| +45° rectangle horizontal (full material) | 190 x 150 mm |
| +60° round (full material) | 90 mm |
| +60° quadratic (full material) | 90 mm |
| +60° rectangle horizontal (full material) | 120 x 90 mm |
| Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
| Dimensions and weights | |
|---|---|
| Max. width/depth | 985 mm |
| Max. height | 1700 mm |
| Length approx. | 1400 mm |
| Width/depth approx. | 685 mm |
| Weight approx. | 185 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.5 kW |
| Engine power coolant pump | 90 W |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 20 – 90 m/min |
| Saw band length | 2480 mm |
| Saw band width | 27 mm |
| Saw band thickness | 0.9 mm |
| Cutting angle | 0 – 60 ° |
| Feed | infinitely variable |
| Lifting the saw bow | Manual |
