Dimensions and weights | |
---|---|
Max. width/depth | 1415 mm |
Max. height | 2000 mm |
Length approx. | 1750 mm |
Width/depth approx. | 1075 mm |
Height approx. | 1420 mm |
Weight approx. | 550 kg |
R185000,00

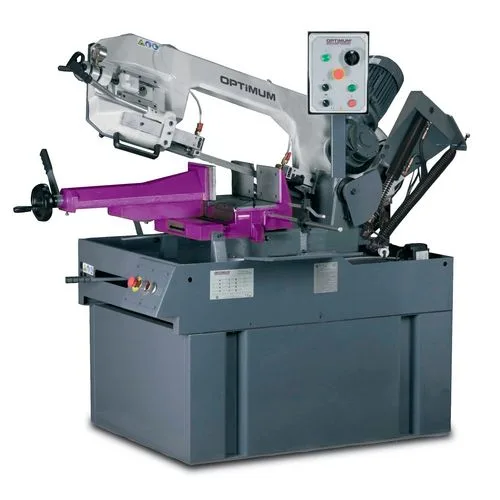

OPTIsaw S 350DG Metal Band Saw: Heavy-Duty Precision Cutting with Double Miter.
Elevate your metal-cutting capabilities with the OPTIsaw S 350DG Metal Band Saw, a robust and versatile tool designed for heavy-duty industrial use. With its double miter feature and heavy industrial design, this band saw delivers exceptional cutting accuracy, efficiency, and reliability, making it an essential addition to any workshop or fabrication facility.
Out of stock
OPTIsaw S 350DG Metal Band Saw Key Features:
Heavy Industrial Design: The OPTIsaw S 350DG boasts a heavy-duty industrial design, built to withstand the rigors of demanding metal-cutting applications. Its sturdy construction ensures stability and durability, allowing for precise and efficient cutting even in challenging work environments.
Silent Run: Enjoy a quiet and smooth cutting experience with the OPTIsaw S 350DG, thanks to its silent run design. This minimizes noise levels during operation, creating a more comfortable and conducive working environment for operators.
Two Switchable Speeds: This metal band saw offers two switchable speeds of 36 and 72 meters per minute, providing versatility and flexibility to tackle a wide range of materials and cutting requirements. The ability to adjust the speed allows for optimal cutting performance and efficiency.
Double Miter Adjustment: With a miter adjustment range of up to -60 degrees by pivoting the entire saw bow, the S 350DG enables precise and efficient cutting at various angles. This double miter feature enhances cutting versatility, allowing for complex cuts and intricate designs.
Robust Quick Release Vice: The band saw is equipped with a large dimensioned, robust quick-release vice that is adjustable via a handwheel. Clamping the workpiece is made easy with a handy quick-release lever, providing secure and stable workpiece positioning during cutting.
High-Quality Bi-Metal Saw Band: As standard, the S 350DG comes with a high-quality bi-metal saw band known for its durability and cutting performance. This ensures long-lasting cutting performance and minimizes downtime for blade replacement.

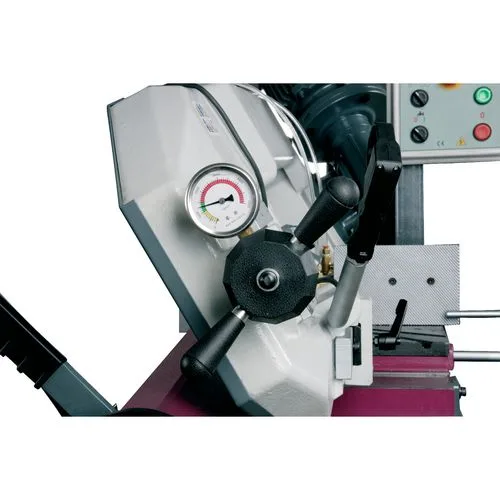

Hydraulic Cylinder Saw Blade Movement: Enjoy precise and infinitely adjustable saw blade movement with hydraulic cylinders, enhancing cutting accuracy and efficiency. The precise control over the saw blade movement allows for clean and precise cuts across various materials.
Fully Equipped and Ready to Use: The OPTIsaw S 350DG comes fully equipped, allowing users to be productive immediately after commissioning. With its comprehensive set of features and accessories, this metal band saw offers everything needed for efficient and reliable metal cutting.
Experience heavy-duty precision cutting with the OPTIsaw S 350DG Metal Band Saw. With its double miter capability, robust construction, and advanced features, this band saw is the ideal solution for demanding metal-cutting applications in industrial settings.
Cutting ranges | |
---|---|
0° round (full material) | 270 mm |
0° quadratic (full material) | 230 mm |
0° rectangle horizontal (full material) | 230 x 350 mm |
-45° round (full material) | 230 mm |
-45° quadratic (full material) | 170 mm |
-45° rectangle horizontal (full material) | 140 x 200 mm |
+45° round (full material) | 230 mm |
+45° quadratic (full material) | 200 mm |
+45° rectangle horizontal (full material) | 210 x 220 mm |
+60° round (full material) | 140 mm |
+60° quadratic (full material) | 140 mm |
+60° rectangle horizontal (full material) | 140 x 220 mm |
Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
Dimensions and weights | |
---|---|
Max. width/depth | 1415 mm |
Max. height | 2000 mm |
Length approx. | 1750 mm |
Width/depth approx. | 1075 mm |
Height approx. | 1420 mm |
Weight approx. | 550 kg |
Electrical Data | |
---|---|
Drive motor output | 2,2 kW |
Engine power coolant pump | 0.05 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Machine data | |
---|---|
Saw band speed(s) | 36 / 72 m/min |
Saw band length | 2925 mm |
Saw band width | 27 mm |
Saw band thickness | 0.9 mm |
Cutting angle | -45 – +60 ° |
Feed | infinitely variable |
Lifting the saw bow | Manual |
