| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
R167800,00

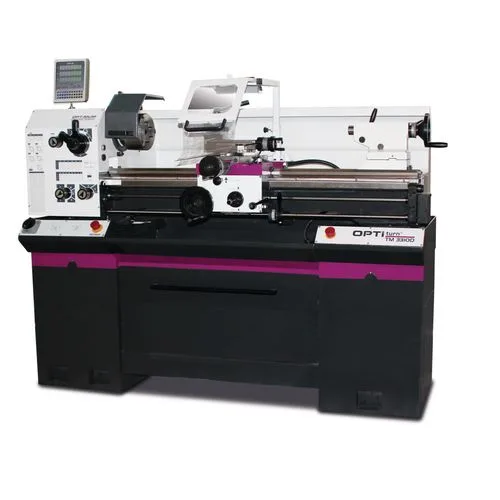

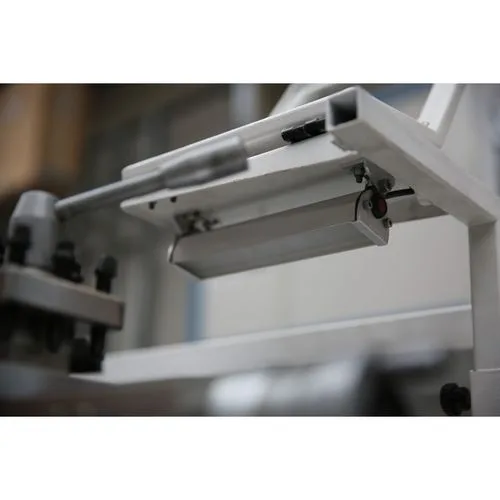

Introducing the OPTIturn TM 3310D Guide and Traction Spindle Lathe: Precision and Versatility Redefined.
Experience unparalleled stability, precision, and ease of use with the OPTIturn TM 3310D Guide and Traction Spindle Lathe. Engineered to meet the demands of modern machining operations, this lathe combines robust construction with innovative features to deliver exceptional performance and reliability.
OPTIturn TM 3310D Guide and Traction Spindle Lathes set a new standard in machining excellence, boasting a range of features designed to enhance productivity and precision. Its hardened and ground Z-axis guideway ensures smooth and accurate movement, while the guaranteed concentricity of the spindle nose, better than 0.015 mm, ensures flawless machining results.
Equipped with DC 24 Volt electrics, this lathe offers reliable and efficient operation, even in demanding industrial environments. The smooth-running feed gear, with rounded gear wheels running in an oil bath, provides consistent performance and longevity, while the handwheels with adjustable fine scaling of 0.04/0.02 mm enable precise control over machining processes.

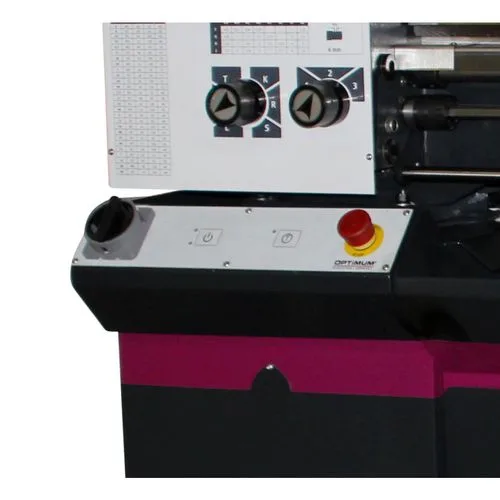

Safety is paramount in the design of the OPTIturn TM 3310D Guide and Traction Spindle Lathes, with safety handwheels featuring a disengaging function according to EN23125 in the X and Z axes, ensuring operator protection during operation. The right/left rotation switchable on the carriage and the two-channel right/left switch, tested according to EN 23125, offer added convenience and versatility.

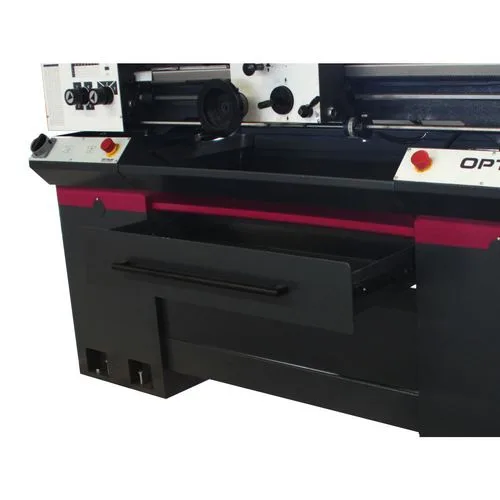

Featuring a hardened main spindle mounted in adjustable, precise taper roller bearings, this lathe delivers exceptional stability and accuracy for a wide range of turning applications. The machine base, constructed from stable steel, provides a solid foundation for machining operations, while the electrically braked main motor ensures rapid stopping for increased safety.

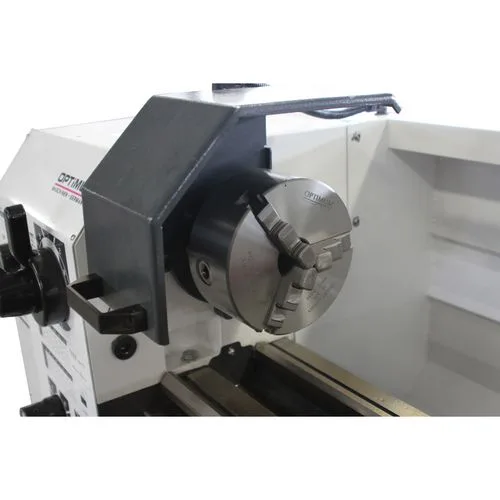

With the OPTIturn TM 3310D, productivity is maximized without compromising on safety or precision. The quadruple steel holder, emergency stop pushbuttons on both sides, and the standard three-jaw lathe chuck further enhance the lathe’s functionality and versatility, making it the ideal choice for demanding machining tasks.
Discover the power of precision machining with the OPTIturn TM 3310D Guide and Traction Spindle Lathe. Engineered for stability, reliability, and ease of use, this lathe offers unmatched performance for a wide range of turning applications.
| Work areas | |
|---|---|
| Max. height | 165 mm |
| Max. width | 1000 mm |
| Swing diameter above machine bed | 330 mm |
| Swing diameter above planing slide | 216 mm |
| Bed width | 190 mm |
| Travel | |
|---|---|
| Travel upper slide | 90 mm |
| Travel cross slide | 168 mm |
| Travel carriage saddle | 850 mm |
| Spindle | |
|---|---|
| Spindle chuck | Camlock DIN ISO 702-2 No. 4 |
| Spindle bore/rod passage diameter | 38 mm |
| Tool holder max. chuck height | 16 mm |
| Spindle cone | MK 5 |
| Speed range | |
|---|---|
| Number of gears | 9 Steps |
| Speed range | 65 – 2000 min¯¹ |
| Dimensions and weights | |
|---|---|
| Max. height | 1590 (DPA) mm |
| Length approx. | 1760 mm |
| Width/depth approx. | 745 mm |
| Height approx. | 1320 mm |
| Weight approx. | 471 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0,02 – 0,4 mm/rev |
| Number of longitudinal feeds | 24 |
| Flat feed range | 0,01 – 0,2 mm/rev |
| Number of flat feeds | 32 |
| Pitches | |
|---|---|
| Metric pitch | 0,4 – 10 mm/rev |
| Number of metric pitches | 29 |
| Imperial pitch | 56 – 4 Gg/1″ |
